Specifications

· Air temperature controllable to 1400°F (760°C)
· For applications requiring high pressure air
· Both ends threaded 3/8", 1/2", 1-1/4", and 2-1/2" NPT
· 304 stainless steel housing

· Recommended minimum airflow 60 SCFH

Style A

· Should be used whenever an absolute leak-proof system up to 150 psi (10 bar) is required
· Two high-temperature power feedthroughs
· Maximum inlet temperature 900°F (482°C)
 Style B
· Maximum air pressure 150 psi (10bar), but will have slight air leakage through power wire strands
· 12" (305mm) fl exible power wires
· Maximum inlet temperature 200°F (93°C)

· RoHS compliant

---

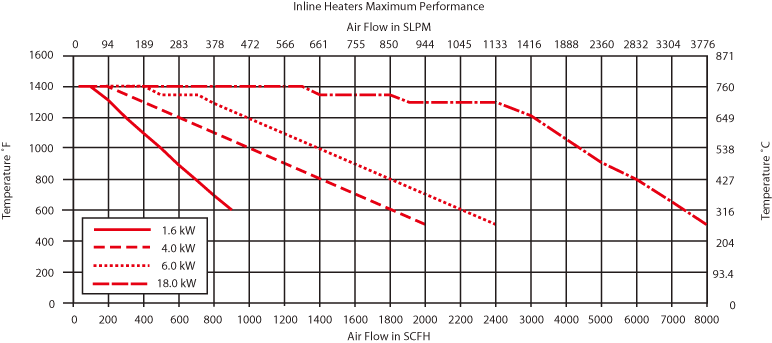

Performance

---

Installation

---
