Specifications

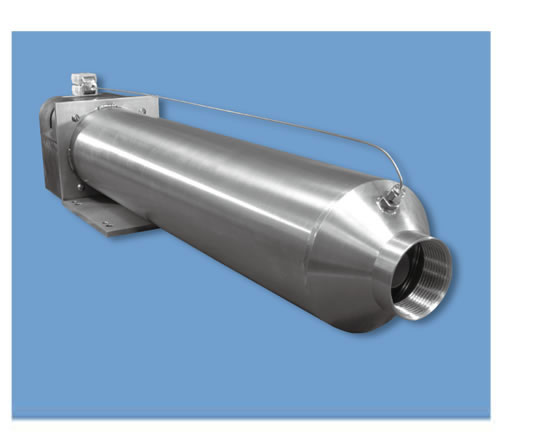

· Specially constructed SUREHEAT MAX air heater for heating air and inert gases   to 900°C (1652°F)
· For applications demanding extremely high temperature including automotive sensors, diesel filter regeneration,thermal stress conditioning, general R&D,   etc.
· Two (2) current models available:
· 30kW 380V - 3φ 45.6A (P/N F076189)
· 36kW 480V - 3φ 43.4A (P/N F076197)
· Custom sizes available upon request
· One (1) dual exposed junction,Type K thermocouple probe included for precision control and over-temperature protection.
· Recommended minimum airflow 12 SCFM (340 SLPM)
· RoHS compliant

---

Performance

---

Installation
