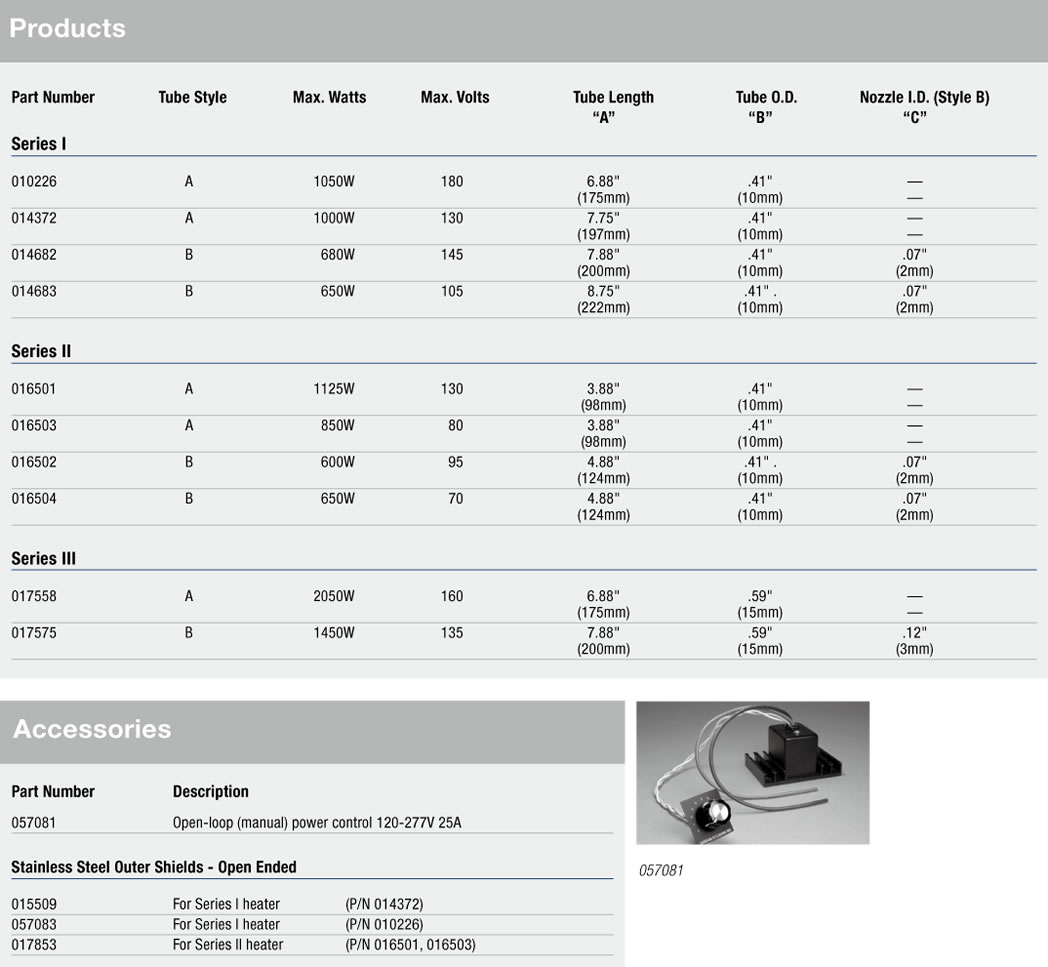

Series I,II,III

Specifications

· Air temperature controllable to 1600°F (871°C)
· Quartz outer tube housing
· Nozzled (Style B) or open-ended (Style A) design
· High-temperature silicone rubber rear adapter/terminal assembly
· Maximum air pressure 7 psi (0.5 bar)
· Maximum inlet temperature 120°F (49°C)
· Recommended minimum airflow SCFM (60 SCFH)

· RoHS compliant

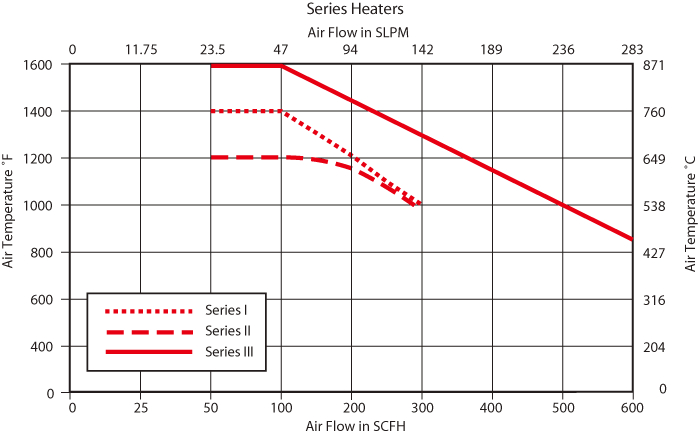

Performance

Installation
