SUREHEAT^® MAX

Specifications

· Air temperature controllable to 1400°F (760°C)
· Power ratings 6.0kW - 36.0kW 240/380/480V - 1φ /3φ
· Two internal Type K thermocouple sensors for control and safety:
· S1 measures inlet temperature
· S2 measures exit temperature
· Rapid heat-up and cool-down
· Maximum air pressure 60 psi (4 bar)
· Maximum inlet temperature 200°F (93°C)
· Recommended minimum airflow 12 SCFM
· Use SUREHEAT MAX Control (purchased separately) for easy installation

· RoHS compliant

Performance

Installation

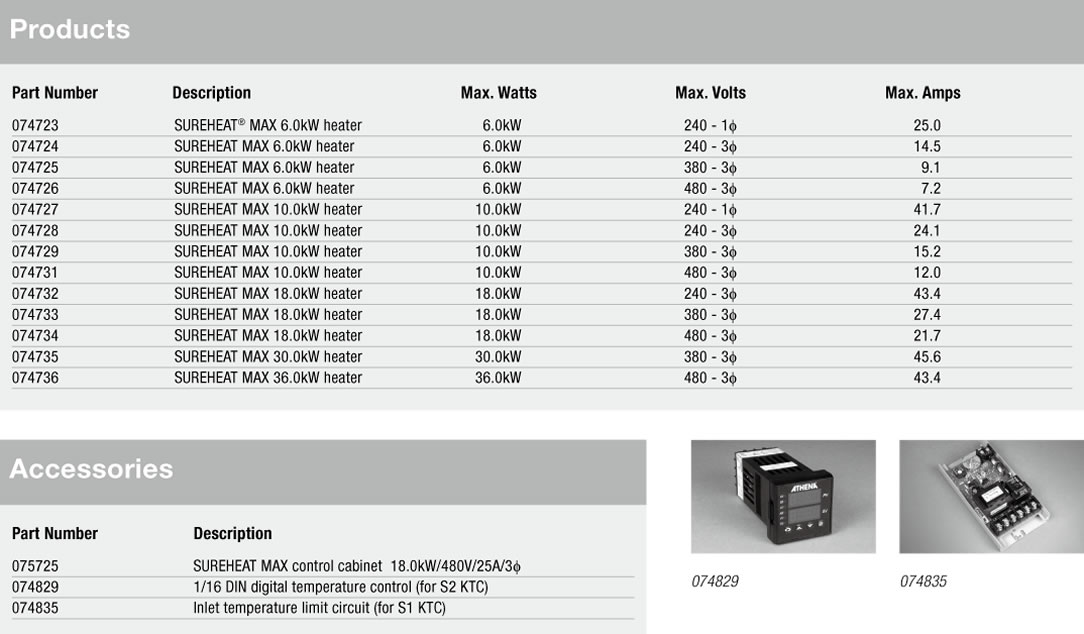

Products
